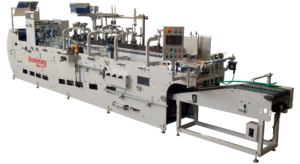

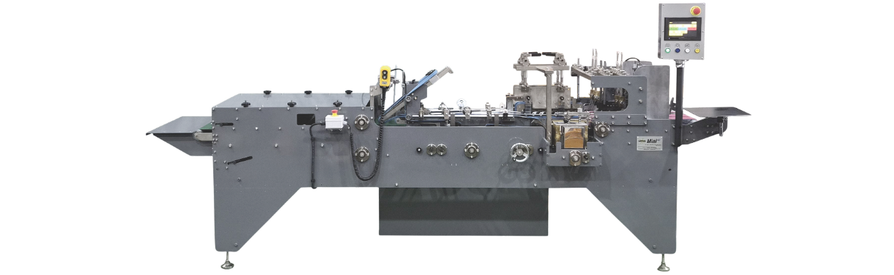

Mini A2 Folder Gluer
Specifications:
- Max. box size: 420 (W) x 300 (L) mm
- Min. box size: 70 (W) X 50 (L) mm
- Paper weight: 200~600 g/m²
- Max belt speed: 144m/m

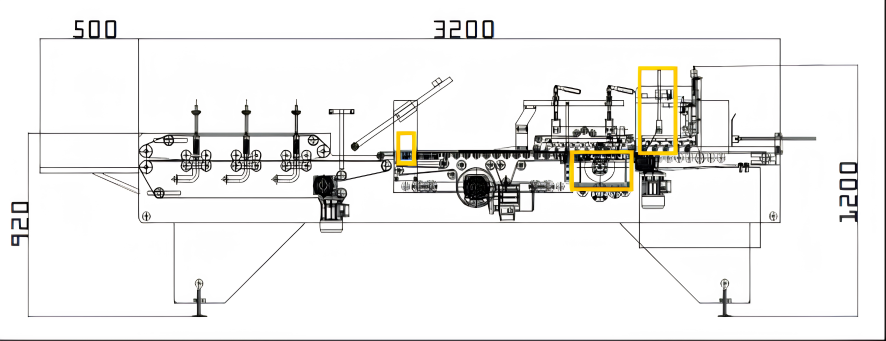

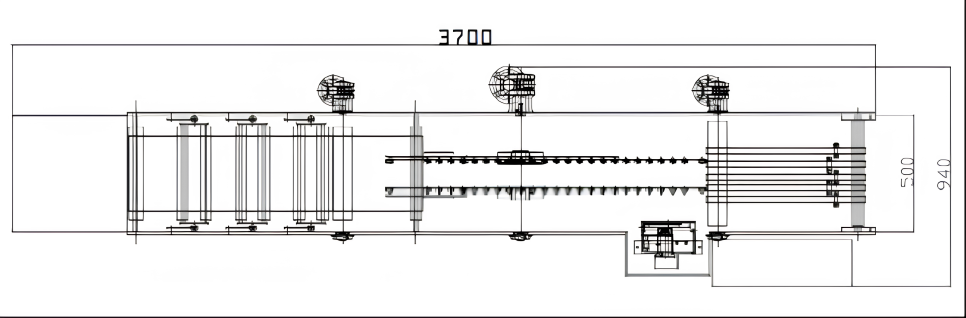

- Machine size: 3.7 (L) x 0.94 (W) x 1.7 (H) m
- Weight approx: 900kg
- Power connection: Max. 5 kW , 380V, 3ph, 60 Hz
- Compressed air connection, 6 Bar, Max. 250 L/min
*Depending on carton design and material propertiesPerfect for printers, packagers, and start-ups.
More Details:
Standard Features:
- Touch monitor control
- Very Easy & simple job settings/change over
- Alarm system for one-man operation support
- Adjustable feeder gate
- Crash lock bottom equipment includes hooks
- Pocket fold device
- Lower glue wheel
- Compression section with optional extension conveyor
- Cold & Hot glue extension system options
