Nested Carton Erecting Machine

L1000/2-B & CE1000/2-B
IN SINGLE & DOUBLE LANE FORMATS

WITH SPLIT SCREEN DELIVERY TOWER FOR RUNNING DIFFERENT BOXES ON THE 2 LANES AT THE SAME TIME

Specifications:

  • Power:
    – 380V, 50/HZ
    – L1000/2-B 11kW

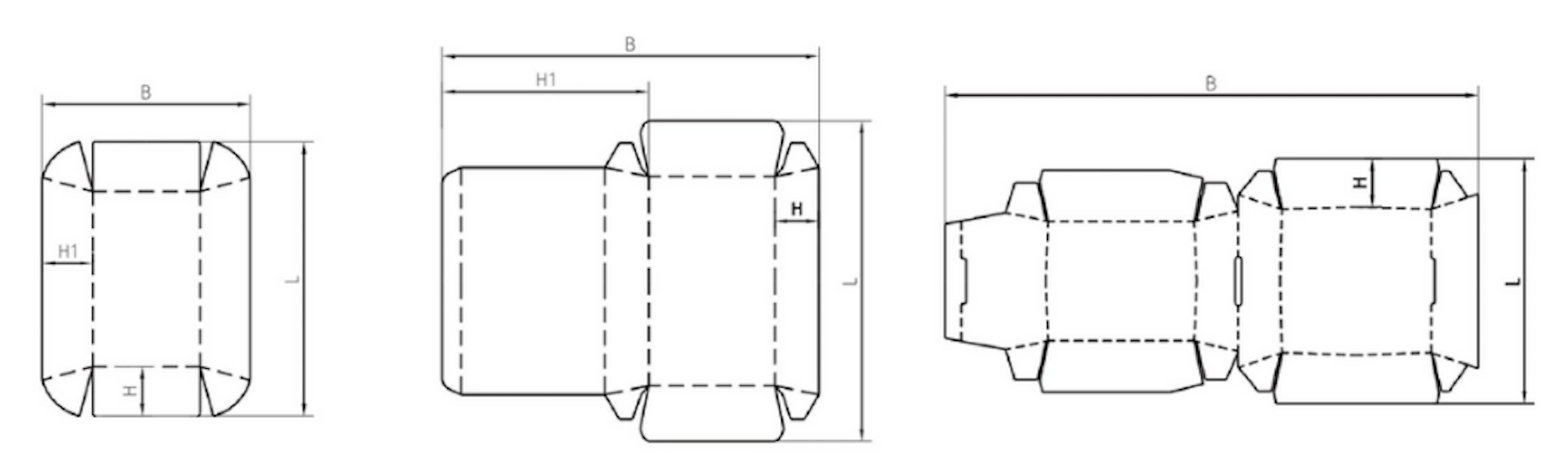

  • Production range:
    Min. 100(W) * 100(L) mm
    Max. 450(W) * 450(L) mm
    Height of side flaps 15mm-260mm
    Height of side flaps + lid 50mm-260mm
    Subject to paper weight design and lanes
  • Production speed:
    Max. 400 pcs/min (3 servo motors)
    Max. 600 pcs/min (5 servo motors)
    Subject to paper weight, design & size
  • Material:
    Paperboard -200~600gms
    Corrugated board paper with thickness <1.5mm

More Details:

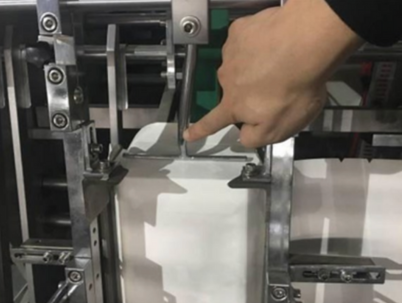

Tray corner folding parts

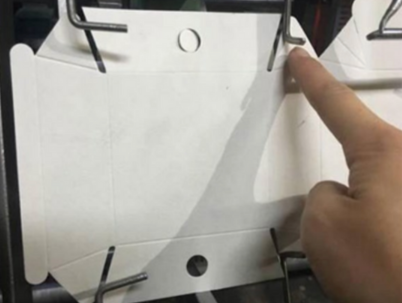

Box edge folding parts
Leak proof box corner folding parts

L1000/2-B with 3 sets of servo motors & CE1000/2-B (high speed) with 5 sets of servo motors

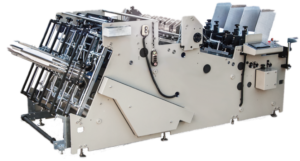

Tray Former
Tray Former
